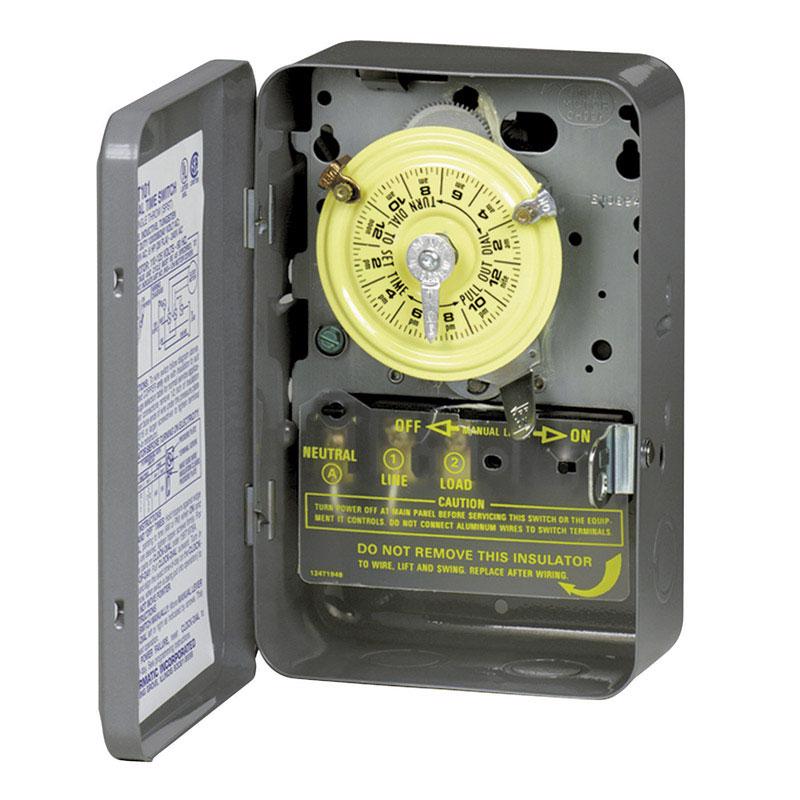

Intermatic Indoor 24 Hour Mechanical Timer 120 V Gray
Intermatic Indoor 24 Hour Mechanical Timer 120 V Gray
- Number in Package: 1
- Packaging Type: Boxed
- Product Type: 24 Hour Mechanical Timer
- Programmable: Yes
- UL Listed: Yes
- Volts: 120
- Brand Name: Intermatic
- Color: Gray
- CSA Listed: Yes
- Sub Brand:
- Cycles:
- Application: CFL, LED and Incandescent
- Amps:
- Indoor or Outdoor: Indoor
- Watts: 3
- Warranty: 1 year Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
- Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
- Knockout Dimensions Back: (2) Combination 1/2 in. - 3/4 in.
- Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
- Operating Temperature Min - Maximum: -40 - 130 degree Fahrenheit
- Depth: 3 7/16 in.
- Height: 7 7/8 in.
- Width: 5 1/8 in.
- Wire Size Minimum: No. 14 AWG
- Wire Size Maximum: No. 8 AWG
- Knockout Dimensions Left: (1) Combination 1/2 in. - 3/4 in.
- Tungsten Ranges: 40 A, 120-240 VAC, 60 Hz
- Electronic Ballast: 16 A
- Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
