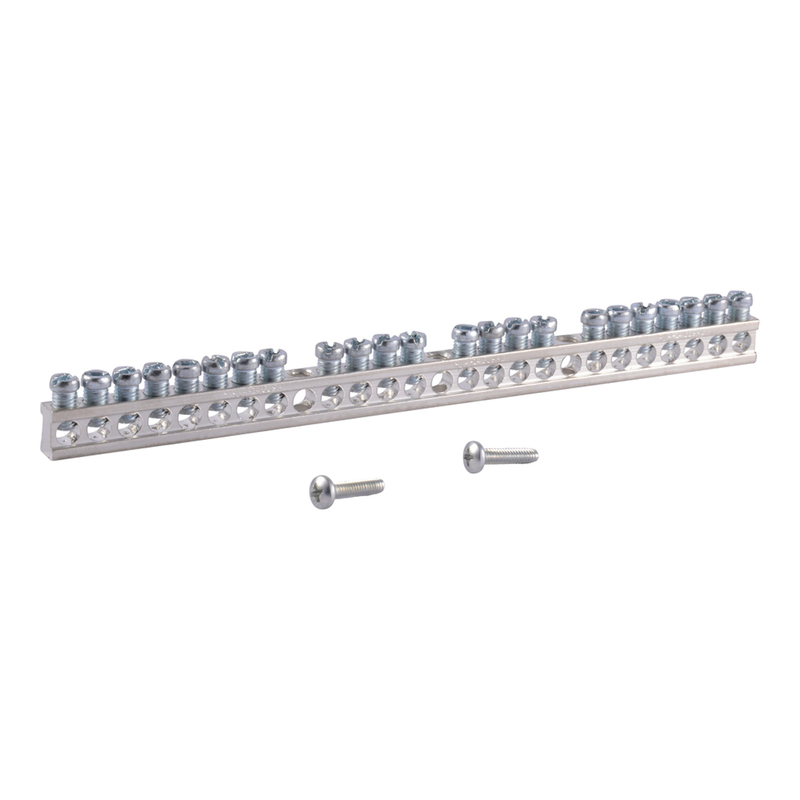

Square D 200 amps 120/240 V 23 space 40 circuits Combination Mount Ground Bar Kit
Square D 200 amps 120/240 V 23 space 40 circuits Combination Mount Ground Bar Kit
- Maximum Number of Circuits: 40
- Mounting Type: Combination Mount
- Number of Spaces: 23
- Packaging Type: Boxed
- Product Type: Ground Bar Kit
- Sub Brand:
- UL Listed: Yes
- Volts: 120/240
- Brand Name: Square D
- Width: 8.0
- Breakers Included:
- Circuit Protection Type: Main Lug
- Amps: 200
- Depth: 1.6
- Height: 3.3
- Indoor or Outdoor: Indoor 23 terminals
- Each terminal accepts (1) #14-#4 copper wire or (1) #12-#4 aluminum wire or (2) #14-#12 copper wire or (2) #12-#10 aluminum wire
- Feeds wires to neutral bar in load center
