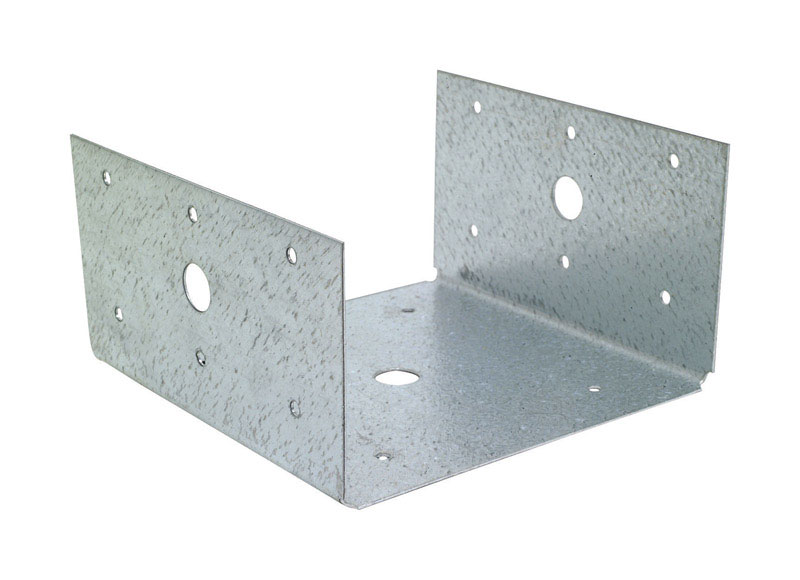

Simpson Strong-Tie ZMax 5.5 in. H X 5.5 in. W 18 Ga. Steel Half Base
Hardware/Building Material, Metal Framing Connectors, Simpson Strong-tie, Triple Zinc Connectors
Simpson Strong-Tie ZMax 5.5 in. H X 5.5 in. W 18 Ga. Steel Half Base
- Gauge: 18
- Joist Fasteners: 16d
- Material: Steel
- Minimum Heel Height:
- Brand Name: Simpson Strong-Tie
- Product Type: Half Base
- Sub Brand: ZMax
- Height: 5.5
- Width: 5.5 Use all specified fasteners
- Do not install bolts into pilot holes
- BC: install with 16d commons or 16dx2 1/2" joist hanger nails
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports)
- To tie multiple 2x members together, the designer must determine the fasteners required to join members to act as one unit without splitting the wood
